CNC Lathe Machine Used for Bearing Ring Thread
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- Ningbo, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean |
| Port: | Ningbo,Shanghai |

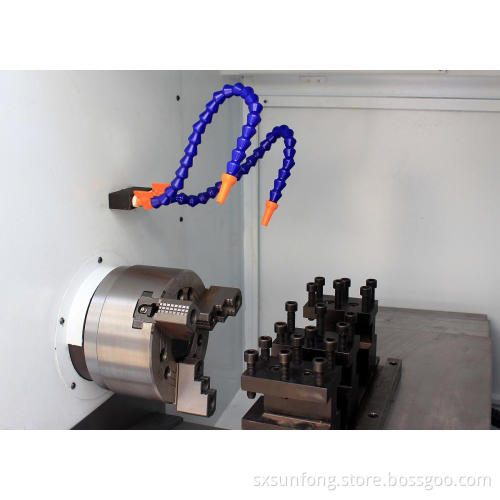

Spring Chuck Instrument CNC Lathe Machine
Computerized Numerical Control Machine is actually a branch of CNC lathe. The biggest characteristic of Computer Digital Cnc Machine is that it mainly uses spring chuck to clamp work piece. Hydraudic Chuck Cnc Machine method is especially suitable for the clamping of small batch work pieces. Only one push handle is needed to complete the clamping of work pieces. The clamping speed is less than one third of that of manual chuck (three actions are required for clamping work pieces with manual chuck), and even much faster than that of hydraulic chuck. A skilled worker can often operate 2-3 machine tools at the same time.
SPECIFICATIONS
BASIC DATA
SF-150
MAX.SWING OVER BED
350mm
MAX.TURNING LENGTH
300mm
X-AXIS TRAVEL(AROSS)
560mm
Z-AXIS TRAVEL(LONGITUDINAL)
300mm
RAPID FEED(X&Z AXIS)
15000mm/min
SPINDLE MOTOR POWER-GSK
5.5kw
SPINDLE BORE
65mm
MAX.BAR CAPACITY
40mm
SPINDLE SPEED RANGE
50-3000rpm
TOOL SIZE(CROSS SECTIONAL)
20*20mm
POSITIONING UNCERTAINTY(P)
X:0.01mm Z:0.01mm
NET WEIGHT
1250KG
GROSS WEIGHT
1350KG
SIZE(LENGTH x WIDTH x HEIGHT)
2070mm x1510mm x1920mm
