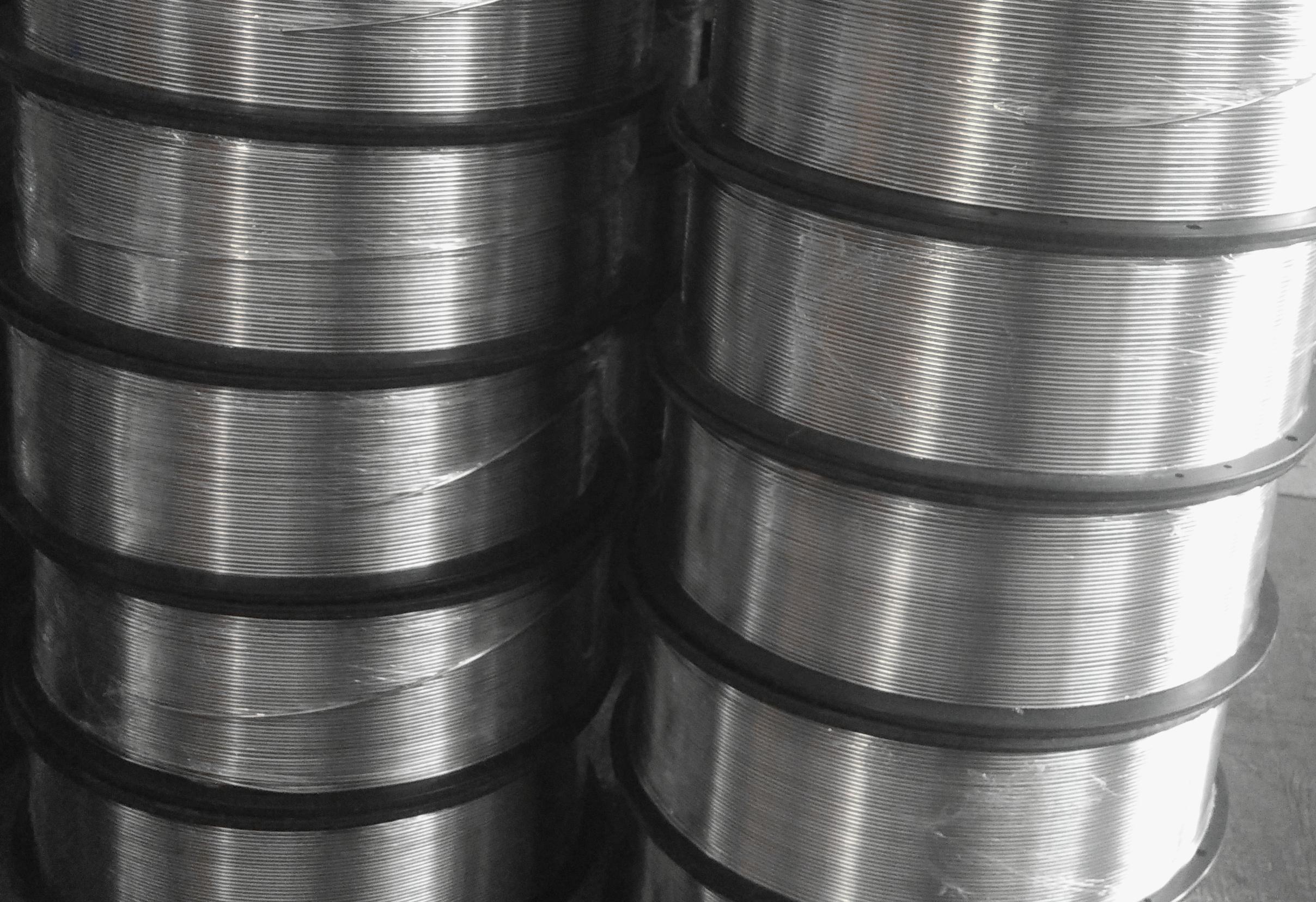

Zinc Aluminum Alloy wire for spraying

Product introduce:

ZnAl15 is a product, which consists of 85% zinc and 15% aluminum by weight. It creates the optimum corrosion resistance against sodium chloride (salt), sulfur dioxide in marine environments.It is the optimal protection against salt. An ideal anticorrosion protective coating of sea water

ZnAl15 wire is the best for spraying, suitable for arc and flame spraying processes,It was used as a coating sprayed onto steel. The alloy produces a coating with the best anti corrosion characteristics of both metals for optimum corrosion protection along with many uses as a solder wire.



Product Characters:

1. Chemical composition

Description	Main components		Impurity(max)
	Zn	Al	Fe	Pb	Cd	Cu	total
ZA15	84-86	14-16	0.03	0.005	0.002	0.004	0.035

 2. Mechanical characteristics

Tensile Strength	≥100
Elongation After Rupture	≥30
Specific Gravityg/cm3	5.6-5.8
Specific resistance(mΩ.mm2/m)at20℃	≤56
Solidus/Liquidus Temp.(℃)	382-455



Application Fields:

Thermal spraying with ZnAl15 can be easily applied to a properly blasted surface up to a 0,5 mm thickness in just one application. The coating is dry on contact allowing sealers and/or topcoats to be applied immediately when specified. One application can last over 15 years without the need for maintenance.Long lasting protection the surface.
